SP250-A01

SP250-A01, a Wi-Fi 6 tri-band outdoor bridge for long distance transmission, is able to provide 8 spatial streams and maximum throughput up to 6,574Mbps. With two 2.5Gbps Multi-Gig ports and one built-in 4*4 directional high-gain antenna and two 2*2 Omni antenna, it provides wireless coverage and point to point transmission with reliability and efficiency and supports up to 1,536 clients simultaneously.

High-capacity and high-speed transmission solution with high bandwidth below 6 GHz

As technology advances, people’ life can be inseparable from internet. In the decade, the throughput and reliable link operating in high bandwidth become more and more important while the demands of end users for upload and download sizes increased and require higher quality of data transmission of online games and HD video streams. Facing the scarcity of available spectrum, telecom and network carriers are looking to fulfill the gap with high frequency bands below 6GHz. When deploying sub-6 GHz band solutions to support mission-critical applications, the system must be able to withstand various environments and SP250-A01, designed by Z-COM meets carrier’s demand for reliable point to point backhaul link solutions with high performance, high bandwidth and high scalability.

Extreme high speed transmission rate and extreme long transmission distance

For typical applications, SP250-A01 with up to 38dBm EIRP can achieve a link budget with a longer communication distance and achieve a connection with longer distance communication than other similar communication systems.

The throughput of SP250-A01 operating at 5GHz, in high bandwidth of 160MHz can be 4.8Gbps based on the latest Wi-Fi technology of 802.11 ax. The real outdoor test result shows that the throughput can reach to 1.2Gbps between two points which distance is 2 KM. (Contact us for more details.)

Amazing transmission performance can be comparable with optic fiber

Besides, Z-COM and telecom carrier together simulated to replace optic fiber connected to 5G base station with SP250 series and then simulated end users to test the throughput by mobile phones and compare with the uplink and downlink throughput of optic fibers.

The performance of SP250 series can be comparable with optic fiber connected to 5G base station and the excellent performance is amazing!

It supports IEEE 1588v2 (PTP) Precision Time Protocol

Synchronous timing is the basis of digital network operation. The new generation of 4G/5G requires more stringent and accurate real-time phase positioning. Therefore, when telecom carriers deploy to the next-generation 4G network such as LTE, it is strongly recommended to use the frequency band below 6 GHz as backhaul links, in additional, accurate timing and frequency reference signals are critical to support interoperability, frequency reuse, and flexible scalability. Therefore, it is very important for telecom carrier to support IEEE 1588v2 (PTP) Precision Time Protocol.

SP250-A01, the outdoor bridge complies with the IEEE 1588v2 standard and can support Precision Time Protocol (PTP). There is no need to worry for telecom carriers when the base stations are connected to SP250-A01 that packet data cannot be synchronized and the time gap affects the service quality of comprehensive network.

Powerful features

	Combined throughput up to  6,574 Mbps		EIRP 38dBm
	Latency–millisecond  sone-direction latency		Supports Bluetooth 5.0
	Security（SNMPv3、HTTPS  /TLS）		WiFi Encryption (WPA  -Enterprise, WPA3-PSK)
	2*2.5G Multi-Gig ports		Supports up to 1,536 client  connections
	Remote VPN Deployment		Dynamic Channel Allocation
	Ingress Protection rated  (IP67) protective metal  enclosure		IEC61000-4-2(Criteria B)
	Supports IEEE 1588v2		Able to be configured by ZCOM  WLC which contains the  centralized management  platform (zMEC)

Purposes and Applications of SP250-A01

With 26 years of experiences in wireless networks, Z-COM has successfully deployed various network applications for government departments, communities, hospitals, shopping malls, enterprise networking, transportation, new power electric cooperatives, public safety even different countries and islands, providing reliable and efficient wireless communication. Based on the latest Wi-Fi 6 technology, SP250-A01, as the point to point bridge, is able to extend wired and wireless networking, replace leased lines and fiber system to backup of fiber optics connected to 4G/5G base stations, and apply to inter-building connections and hot spot coverages.

             Utilities & electric cooperatives                                                Enterprise

                               Telecom carriers                                                           Public safety

High-density Scenarios Application

Wi-Fi 6 supports MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), and Basic Service Set (BSS) Color Code to improve the capacity and efficiency for enabling 1536 clients to access the AP and achieves the premium connect experience in different scenarios applications.

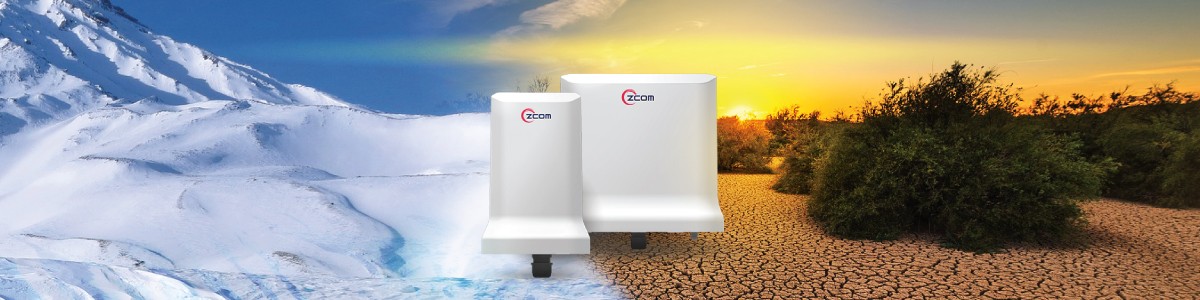

Hardened-grade for Outdoors

Z-COM SP250-A01 designs for extreme temperatures and environments and includes IP67 waterproof and dustproof that can withstand harsh environments to be used in various weather conditions.

Optimize Performance

The OFDMA feature allows the AP to assign different parts of the spectrum to different users, improving traffic coordination and rational spectrum usage.

Power Efficiency

The Target Wake-up Time (TWT) features to coordinate transmission times from different sources automatically and devices to sleep during the non-transmission periods and extend the battery life of devices which connects with APs.

Easy and Flexible Installation

The SP250-A01 provides the necessary parts for installation and features Plug-and-play and configuration free for celling installation.

Centralized Management Optional

Allowed to configure and manage multiple APs in a centralized choices include zMEC (container-based) or Wireless LAN Controller solutions.

Through Z-COM WLC that includes remote monitor, troubleshooting, and efficiency-optimized and enjoys simple management, configuration and monitoring of all access points.

With zMEC, the platform for edge computing and PaaS, manages virtualized applications and import software by any x86 servers under different applications.
