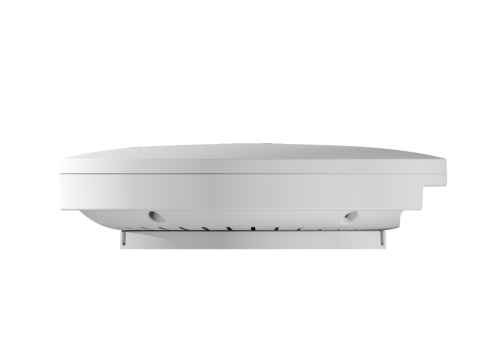

AS240
802.11ax, 2x2 Dual-Band Indoor Ceiling Access Point
Dual-band Wi-Fi 6 (802.11ax), compatible with Wi-Fi 5 (802. 11ac)
Supports up to 1,200 Mbps in 5GHz and 574 Mbps in 2.4GHz
Max. EIRP up to 20dBm in 5GHz and 20dBm in 2.4GHz
With 2 x RJ45 1G Ethernet Port
Target wake time for power-saving of clients & IoT devices
Uplink and downlink of MU-MIMO improves transmission to APs and client devices
Description
Z-COM AS240 is mainstream and value Wi-Fi 6 indoor ceiling access point, which is ideal for retail, SOHO, clinic and other indoor applications.
It is affordable, small and easy to use, but at the same time comes with a very powerful Qualcomm Chipset, capable of all the advanced configurations and serve dual-band 5GHz and 2.4GHz radio at the same time.
Wi-Fi 6, The Next Generation
Ultra-Fast Wi-Fi 6 Data Rate
Simultaneous 574 Mbps on 2.4 GHz and 1200 Mbps on 5 GHz totals 1774 Mbps Wi-Fi 6 speeds.
Transmit Beamforming
AS240 with beamforming design (TxBF) to improve the signal strength and achieve higher range to a single client for RF reliability.
Multiple Applications
Allows to perform multiple functions, ideal for various scenarios like campus, restaurant, offices, clinic, and commercial space.
Flexible Power Options with 1Gbps PoE + Ethernet
AS240 delivers exceptional performance to support the demand for better Wi-Fi with optimized wired performance, 1G Ethernet port. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.
Easy and Flexible Installation
The AS240 provides the necessary parts for installation and features Plug-and-play and configuration free for celling installation.
Centralized Management Optional
AS240 are allowed to configure and manage multiple APs in a centralized choices include zMEC (container-based) or Wireless LAN Controller solutions.
Through Z-COM WLC that includes remote monitor, troubleshooting, and efficiency-optimized and enjoys simple management, configuration and monitoring of all access points.
With zMEC, the platform for edge computing and PaaS, manages virtualized applications and import software by any x86 servers under different applications.
Specification
| IEEE 802.11 a/b/g/n/ac/ax |
| 802.11axa: 8.6 to 1200Mbps 802.11axg: 8.6 to 574Mbps 802.11ac: 6.5 to 867Mbps 802.11n : 6.5 to 300Mbps 802.11a/g: 6 to 54Mbps 802.11b: 1 to 11Mbps |
| Taiwan | 2.412 – 2.462 GHz；11 channels 5.180 – 5.320 GHz；8 channels 5.500 – 5.720 GHz；12 channels 5.745 – 5.825 GHz；5 channels |
| US | 2.412 – 2.462 GHz；11 channels 5.180 – 5.320 GHz；8 channels 5.500 – 5.720 GHz；12 channels 5.745 – 5.825 GHz；5 channels |
| EU | 2.412 – 2.472 GHz；13 channels 5.180 – 5.320 GHz；8 channels 5.500 – 5.700 GHz；11 channels |
| China | 2.412 – 2.472 GHz；13 channels 5.180 – 5.320 GHz；8 channels 5.745 – 5.825 GHz；5 channels |
| Japan | 2.412 – 2.472 GHz；13 channels 5.180 – 5.320 GHz；8 channels 5.500 – 5.720 GHz；12 channels |
| India | 2.412 – 2.472 GHz；13 channels 5.180 – 5.320 GHz；8 channels 5.500 – 5.720 GHz；12 channels 5.745 – 5.865 GHz；7 channels |
| Notice | *Operating Channel depends on configured regulatory domain. |
| Antenna Type | Internal |
| Antenna Gain (max) | 2.4GHz：2dBi 5GHz：2dBi |
| EIRP | 2.4GHz：20dBm 5GHz：20dBm |
| Frequency Bands | ISM (2.4-2.484GHz) U-NII-1 (5.15-5.25GHz) U-NII-2A (5.25-5.35GHz) U-NII-2C (5.47-5.725GHz) U-NII-3 (5.725-5.85GHz) |
| 2.4GHz TX TARGET POWER (PER CHAIN) | MU HE40 MCS0 : 15dBm±2dBm MCS11 : 8dBm±2dBm MU VHT40 MCS9 : 10dBm±2dBm |
| 5GHz TX TARGET POWER (PER CHAIN) | MU HE40 MCS0 : 15dBm±2dBm MCS11 : 8dBm±2dBm MU VHT40 MCS9 : 10dBm±2dBm |
| 2.4GHz RECEIVE SENSITIVITY | HE20 MCS0 : <-89dBm MCS11 : <-60dBm HE40 MCS0 : <-87dBm MCS11 : <-59dBm |
| 5GHz RECEIVE SENSITIVITY | HE20 MCS0 : <-94dBm MCS11 : <-65dBm HE40 MCS0 : <-91dBm MCS11 : <-62dBm HE80 MCS0 : <-88dBm MCS11 : <-59dBm |
| Compliance Standards | FCC Part 15 (Class B) FCC Part 15C FCC Part 15E NCC WEEE & RoHS IEEE standards： IEEE 802.11a/b/g/n/ac/ax |
| 2.4GHz | 2×2:2 |
| 5GHz | 2×2:2 |
| 2.4GHz | 2.4GHz：20/40 MHz |
| 5GHz | 20/40/80 MHz |
| MU-MIMO |
| Peak PHY Rates | 2.4 GHz：574 Mbps 5 GHz：1200 Mbps |
| Client Capacity | 1024 |
| Ethernet | 1x 10/100/1000Mbps WAN Port 1x 10/100/1000Mbps LAN Port |
| Addition | 1x Reset Button |
| Environmental | Storage Temperature：-40~ 70 ℃ Humidity：5 ~ 95% Operating Temperature：-15 ~ 55 ℃ Humidity：5 ~ 95% (non-condensing) |
| Mounting Method | Ceiling |
| Dimension | 175 mm × 39.1 mm |
| Anti-static Grade | IEC61000-4-2(Criteria B) Air：±8kV Contact：±4kV |
| Green | RoHS compliant |
| LED Definition | PWR/SYS：Green Green Off：power / system off Green On：power / system on WLAN ：Green Off：No WLAN connection detected Green On：WLAN connection detected Green Blinking：Sending / receiving data WAN：Green Off：No Ethernet connection detected Green On：Ethernet connection detected Green Blinking：Sending / receiving data |
| Supported WLC or container-base | - WS5G2 / WS7G2 /WS10G2 / WS200G2 / WS500G2 / WS1000G2 - zMEC |
| Warranty | 1 year |
