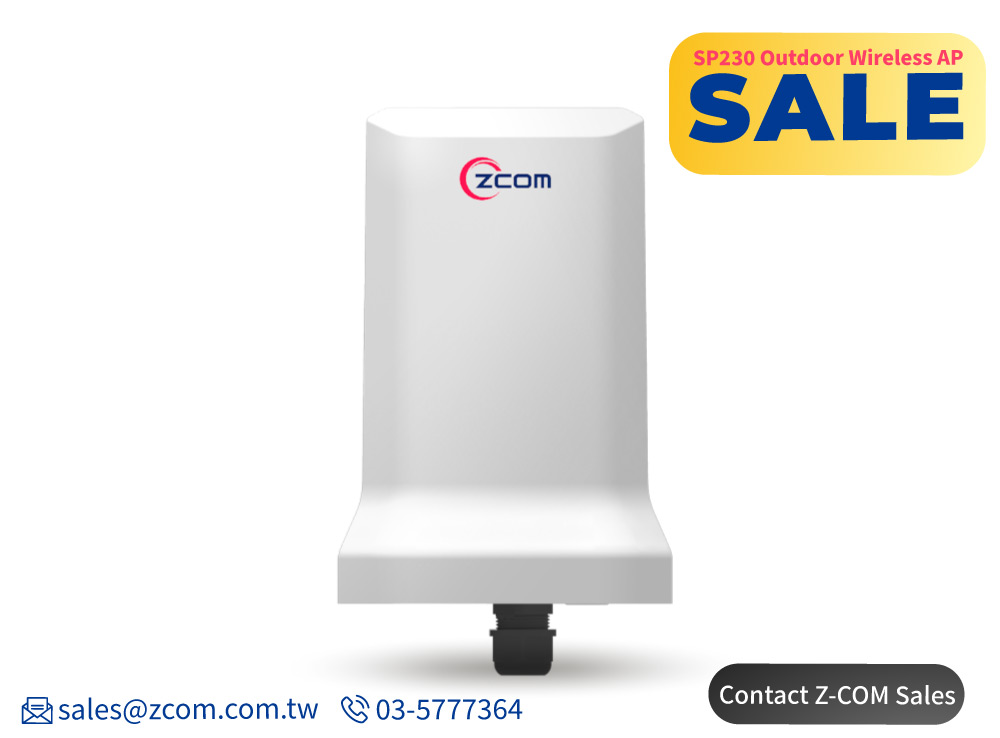

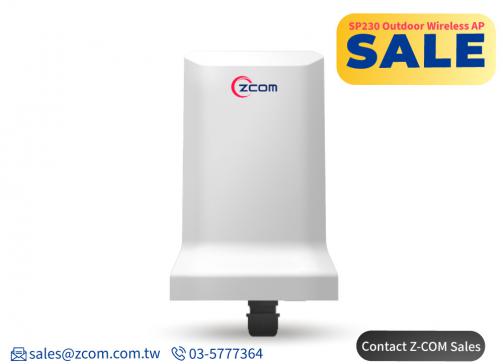

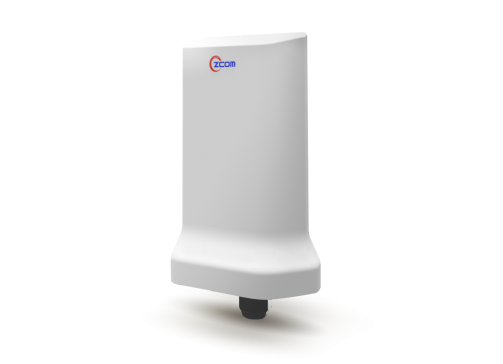

SP230

802.11ac Wave 2 2X2 Dual-Band

Supports IEEE 802.11ac Wave 2 standard
30dBm high power
Data rate up to 1167Mbps
Provides PoE Out
IP67 rating+14 class wind force resistance
Salt spray test

Description

The SP230 802.11ac Wave 2 2x2 dual band outdoor access point provides adata rate of up to 1.1Gbps. Built in high transmit power for superior Wi-Fi coverage.

Designed for extreme temperatures and environments and include IP67 waterproof and dust resistance that can withstand harsh environments. The SP230 is equipped with a PoE out capability that enables cost-effective deployment to smart surveillanceapplications.

TheSP230 is ideal for Wi-Fi deployment such as rural areas, parks, and campuses, meets the demanding needs of customers across a broad range of industries spanning enterprises and service providers.

	38dBm High Power Maximum transmit power can be up to 38dBm, bringing superior Wi-Fi signal coverage with a radius of up to 400 meters.
	PoE Out Powers a device such as an IP camera or a VoIP product for fast deployment.
	Flexible installation Provides various working mode which can be applied flexibly in different scenarios.
	Robust Product Design Encased with IP67-rated and scale-level 14 windproof robust design that can withstand harsh environments.

Series Proucts:


Features		SP230	SP230-S5
HW Function	Max. PHY Rate	2.4GHz: 300Mbps 5GHz: 867Mbps	2.4GHz: 300Mbps 5GHz: 867Mbps
HW Function	Max. Output Power	2.4GHz: 30dBm 5GHz: 27dBm	2.4GHz: 30dBm 5GHz: 27dBm
Antenna	Antenna Type	2.4/5GHz: Omni antenna	2.4GHz: Omni antenna 5GHz: Directional antenna
Antenna	Antenna Gain	2.4GHz: 5dBi (Embedded) 5GHz: 5dBi (Embedded)	2.4GHz: 5dBi (Embedded) 5GHz: 11dBi (Embedded)
Features	PoE Out	Yes	Yes
Features	BLE (Bluetooth)	Yes	Yes
IP Rating		IP67	IP67

Specification

Standards

IEEE 802.11a/b/g/n/ac

Antenna Peak Gain

2.4GHz: 5dBi (Embedded)
5GHz: 5dBi (Embedded)

Supported Data Rates

802.11b: 11 Mbps / 802.11a/g: 54 Mbps
802.11n: 300Mbps / 802.11ac: 867Mbps

Frequency Bands and Operating Channels

Taiwan	2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels
US	2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.825 GHz; 5 channels
EU	2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.700 GHz ; 11 channels
China	2.412 – 2.472 GHz; 13 channels 5.745 – 5.825 GHz; 5 channels
Japan	2.412 – 2.472 GHz; 13 channels 5.500 – 5.720 GHz; 12 channels
India	2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz ; 12 channels 5.745 – 5.865 GHz; 7 channels
Notice	*Operating Channel depends on configured regulatory domain.

Receive Sensitivity

11b: ‐94dBm / 11a/g: ‐93dBm / 11n: ‐95dBm / 11ac: -95dBm

Indicator

Power / System / WLAN / WAN

Power

Power Consumption	< 12W
Power Input	DC 48V, 0.5A 802.3at PoE

Physical Characteristics

Dimensions	151 (L) × 75.5 (W) × 235 (H) mm
Weight	1 Kg
Mounting Type	Pole mount

Bluetooth

Version	4.1
Frequency	2400 – 2480MHz
Antenna	1.5dBi (Embedded)

Package Contents

802.11ac Wave 2 2 x 2 Dual Band Outdoor Access Points. Mounting bracket included. Does not include power adapter.

Radio Chains

2.4GHz: 2x2:2
5GHz: 2x2:2

Antenna Type

2.4/5GHz: Omni antenna

Bandwidth

20 / 40 / 80 MHz

Transmit Power

Max.	2.4GHz: 35dBm w/ 2 ant. 5GHz: 32dBm w/ 2 ant.
Notice	*The maximum power setting will vary by channel and according to individual country regulations.

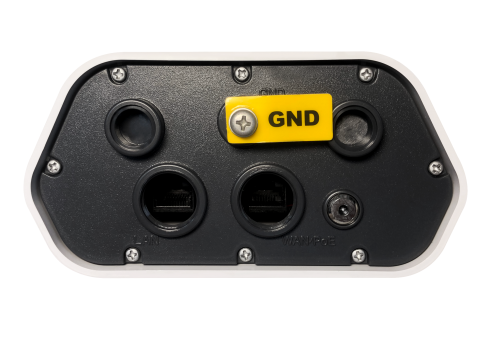

Interfaces

2 × 10/100/1000 BASE-T
1 WAN port support 802.3at PoE
1 LAN port support PoE Out
(Max 10Watt, 45+/78-)
1 × Ground terminal

Supported Wireless LAN Controllers

WS5G2 / WS7G2 /WS10G2

IP Rating

IP67

Environmental

Storage	Temperature: -40 ~ 80 ℃ Humidity: 10 ~ 90%
Operating	Temperature: -40 ~ 70 ℃ Humidity: 10 ~ 90% (non-condensing)

Compliance Standards

IEC/EN 60950
EN55032 & EN55024
WEEE & RoHS
Radio approvals:
EN 300 328, EN301 893 (Europe)
EN 301 489-1 and -17 (Europe)
SRRC (China)
IEEE standards:
IEEE 802.11a/b/g/n/ac
IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
Multimedia:
Wi-Fi multimedia (WMM)
Security:
Open System
802.1x
WPA-PSK/WPA2-PSK
WPA-Enterprise/WPA2-Enterprise
Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS)
Protected EAP (PEAP)
EAP-Subscriber Identity Module (SIM)
*Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC)

Optional Accessories

SP-CBM5	Anti-theft steel rope + allen wrench + four screws
SP-MKM5	Two-dimensional mounting kit
SP-WP-CM20	Waterproof cable gland
SP-48063-XX	48V PoE Injector + power cord
Notice	*When ordering power adaptors, you must specify the destination region by indicating -US, -EU instead of -XX.
