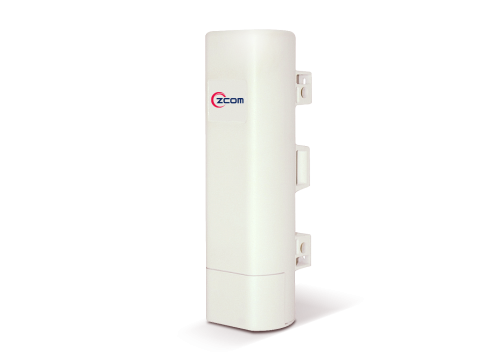

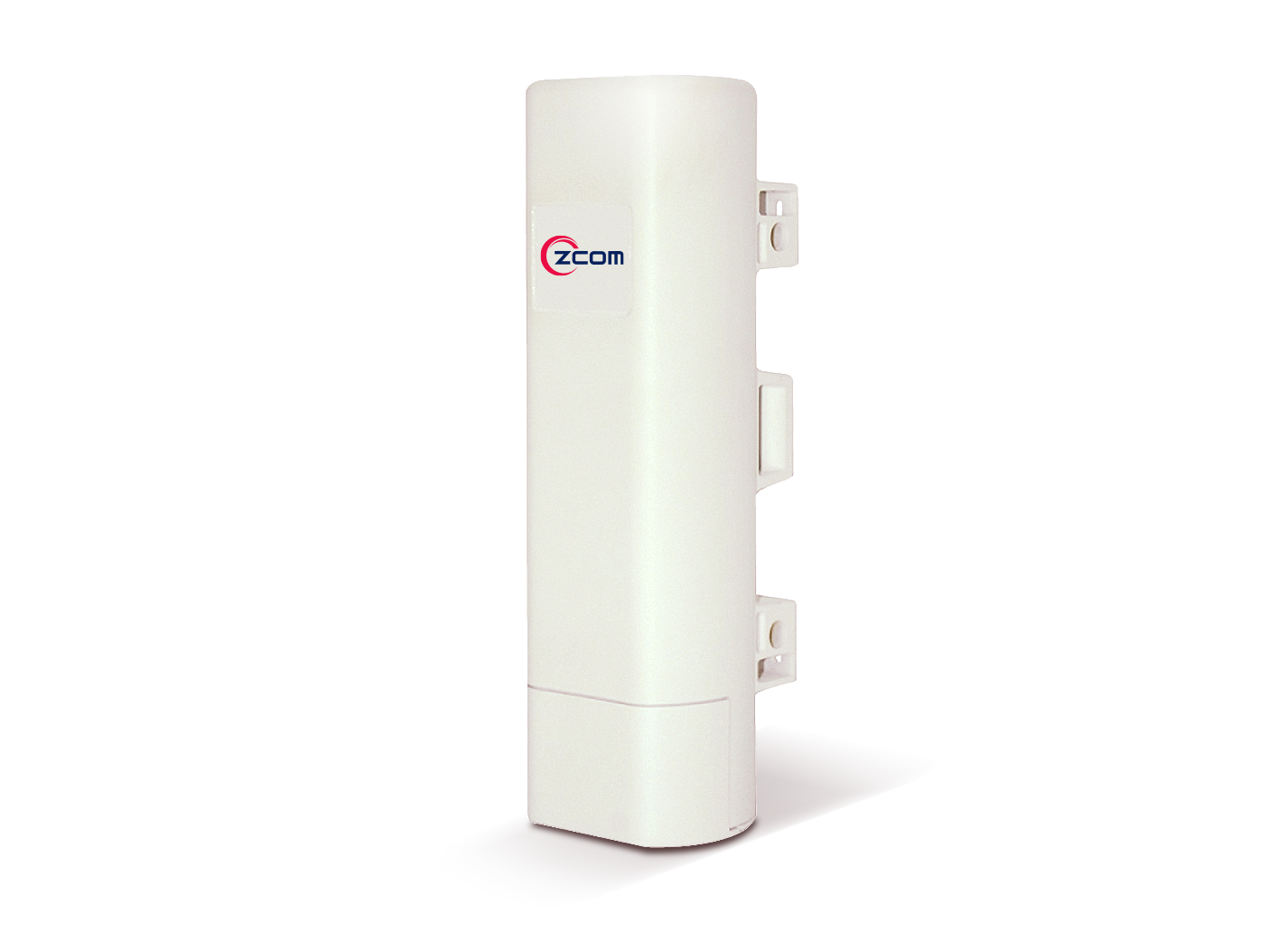

ZAC-1023-2-9

802.11n 2X2 Single-Band
PtP/PtMP

Supports IEEE 802.11b/g/n standard
IP55 rating
Built in 9dBi internal antenna for PtP/PtMP deployment
Maximum data rate up to 300Mbps
Transmission distance up to 2km

Description

ZAC-1023-2-9 is a product compliant with the IEEE 802.11n standard to support higher bandwidth for wireless internet service.

ZAC-1023-2-9 supports 2.4GHz access point/CPE features with outstanding throughput performance and a cost-effective design that allows for reliable equipment at affordable prices.

It features an embedded 9 dBi internal antenna with extensive wireless coverage, supports a data rate of up to 300 Mbps, and allows for a connection distance of up to 2km.

Long-distance transmission

With a high-powered data rate, ZAC-1023-2-9 provides remarkable transmission distance of up to 2km

Advanced Security

Supports WPA-PSK/WPA2-PSK with IEEE 802.1x authentication

Easy installation and Flexible deployment

Quick installation in minutes and easy to move into any area

Remote Monitoring

Transmits the product status to ZCOM wireless LAN controller, which mitigates the IT staff's management effort

Specification

Standards

IEEE 802.11b/g/n

Supported Data Rates

802.11b: 11 Mbps / 802.11a/g: 54 Mbps / 802.11n: 300Mbps

Frequency Bands and Operating Channels

Taiwan	2.412 – 2.462 GHz; 11 channels
US	2.412 – 2.462 GHz; 11 channels
EU	2.412 – 2.472 GHz; 13 channels
China	2.412 – 2.472 GHz; 13 channels
Japan	2.412 – 2.472 GHz; 13 channels
India	2.412 – 2.472 GHz; 13 channels
Notice	*Operating Channel depends on configured regulatory domain.

Receive Sensitivity

Min.	-91dBm (Min.)
2.4GHz	11b: -91dBm / 11a/g: ‐89dBm / 11n: ‐83dBm

Interfaces

1 x RJ45 support 10/100Mbps
1 x Reset button
1 x Ground terminal

Supported Wireless LAN Controllers

WS5G2 / WS7G2 /WS10G2 / WS200G2 / WS500G2 / WS1000G2

IP Rating

IP55

Environmental

Storage	Temperature: -40 - 70 ℃ Humidity: 10 - 95%
Operating	Temperature: -20 - 70 ℃ Humidity: 10 - 95% (non-condensing)

Package Contents

ZAC-1023-2-9

802.11n 2 x 2 PtP/PtMP Outdoor Access Points. Mounting bracket and power adapter included.

Radio Chains

2.4GHz: 2x2:2

Bandwidth

20 / 40 MHz

Max. Transmit Power

2.4GHz	39dBm w/ 2 ant.
Notice	*The maximum power setting will vary by channel and according to individual country regulations.

Antenna Peak Gain

2.4GHz: 9dBi (Embedded)

Indicator

Power / WLAN / LAN / Signal

Power

Power Consumption	12W
Power Input	802.3af (PoE)

Physical Characteristics

Dimensions	205 (L) × 64 (W) × 61 (H) mm
Weight	500g
Mounting type	Pole mount

Compliance Standards

IEC/EN 60950-1
EN55032 & EN55024
EN62311
WEEE & RoHS
FCC Part 15 sub B/C/E Class A
NCC
Radio approvals:
EN 300 328, EN301 893 (Europe)
EN 301 489-1 and -17 (Europe)
IEEE standards:
IEEE 802.11n
IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
Multimedia:
Wi-Fi multimedia (WMM)
Security:
Open System
802.1x
WPA-PSK/WPA2-PSK
WPA-Enterprise/WPA2-Enterprise
Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS)
Protected EAP (PEAP)
EAP-Subscriber Identity Module (SIM)
*Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC)
