【Government】National-Grade Secure Smart Office for the Railway Bureau

High-Performance Wi-Fi 6 and Centralized Management Empower Digital Education

Building a National-Grade Security Wi-Fi 6 Smart Office Environment

To enhance administrative efficiency and strengthen information security, the Railway Bureau of the Ministry of Transportation and Communications (RBMOTC) has introduced a next-generation wireless network architecture for its offices in the Banqiao Station Building (9th–13th and 21st floors). This project deployed 30 high-performance Wi-Fi 6 Access Points (APs), utilizing a centralized management architecture and rigorous authentication mechanisms to create a modern government network environment that balances performance, security, and management efficiency.

Project Requirements & Challenges

-      Security Compliance & Authentication:

Adhering to the national "Non-China Made" equipment policy and implementing 802.1x authentication and WPA3 encryption to ensure the security of sensitive data transmission within the building.

-      Seamless Full-Area Coverage:

Providing comprehensive signal coverage for the 9th–13th and 21st floors, eliminating dead zones caused by partitions to ensure uninterrupted service during cross-floor movement.

-      High-Density Connection Capacity:

Addressing high personnel density by requiring each AP to support 256+ concurrent connections, resolving bandwidth congestion and latency issues.

-       Centralized Visual Management:

Replacing inefficient standalone management with a centralized platform that provides real-time network status and reduces IT maintenance workloads.

Solutions & Product Features

TAP + WLC Centralized Architecture

-      Wi-Fi 6 High-Efficiency Transmission:

Enhances performance for multiple concurrent users and improves the network experience in high-density environments.

-      Centralized WLC Control:

Unified management of 30APs to simplify configuration, monitoring, and maintenance workflows.

-      Stable Wireless Coverage:

Strategic deployment of AS240 APs across meeting rooms and floors to minimize signal dead zones.

NMS + Visualized Interface

-      Visualized Topology Management:

Provides intuitive network topology diagrams and RF Signal Heatmaps for clear visibility of network status.

-      Active Alert Mechanism:

Automatically sends email notifications to administrators if a device remains unresponsive for more than 5 minutes.

-      Real-Time Status Monitoring:

A graphical dashboard displays real-time traffic analysis, user statistics, device health, and generates reports.

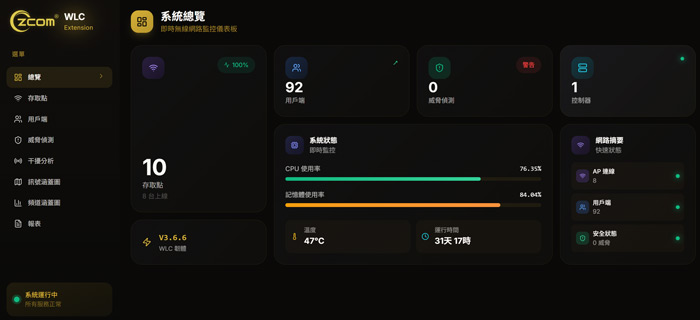

Figure : NMS Network Management System Dashboard

Network Deployment Architecture

1.     Wireless Access Layer: Wi-Fi 6 APs deployed on ceilings across all floors to provide full-area coverage.

2.     Access Layer: Utilization of PoE adaptors for power and data transmission, solving power cabling challenges.

3.     Core Management Layer: WLC and NMS centralized in the server room, integrated with AD and LDAP

Deployment Results & Benefits

•    Comprehensive Office Optimization:

Improved the network environment for the 9th–13th and 21st floors, providing staff with a high-speed, stable Wi-Fi 6 experience.

•    Enhanced High-Density Performance:

Resolved connectivity issues in open office areas; each AP supports 256 users, ensuring smooth operation of official systems and video conferencing.

•    Smart Operations & Maintenance (O&M):

The centralized network management and active alerts allow the IT department to monitor 30+ APs in real-time, significantly reducing labor costs.

•    National Security Policy Implementation:

100% "Non-China Made" equipment combined with high-standard authentication builds a resilient and secure digital government fortress.
